Home >> Acura >> 2010 >> RL >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Overhaul >> Disassembly/Reassembly

Starter Overhaul: Disassembly/Reassembly

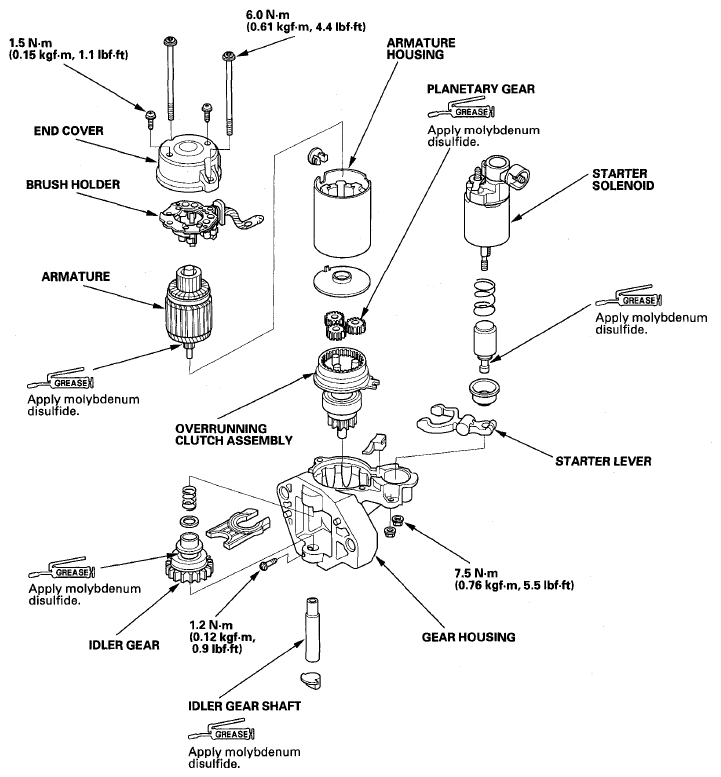

Fig 1: Identifying Starter Overhaul Disassembly/Reassembly Replacement Components With Torque Specifications

G06163201

Courtesy of AMERICAN HONDA MOTOR CO., INC.
