Acura
>>
2010
>>
RL
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Relays And Control Unit Locations
>>
Roof and Trunk
Roof and Trunk

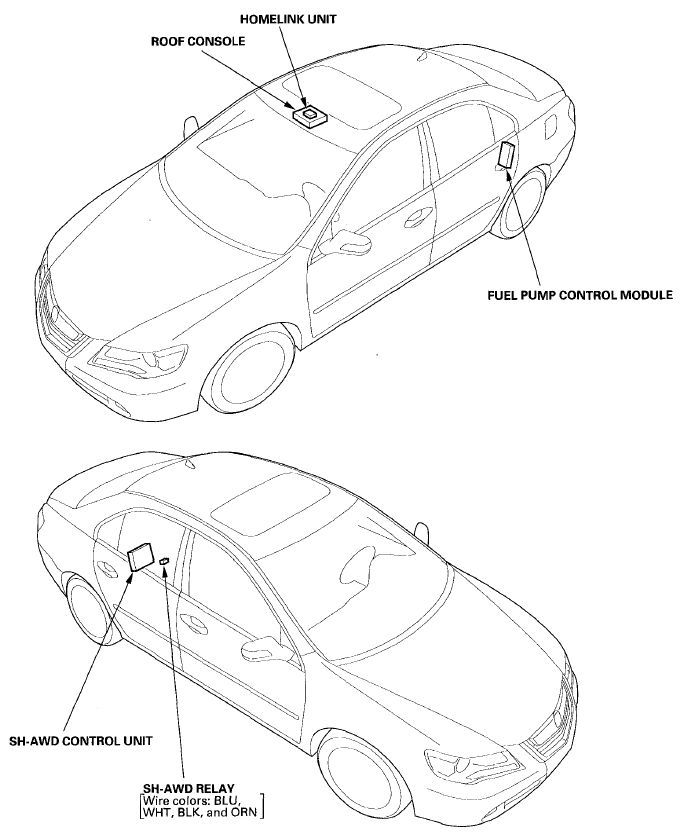

Fig 1: Identifying Relay And Control Unit Locations - Roof And Trunk (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

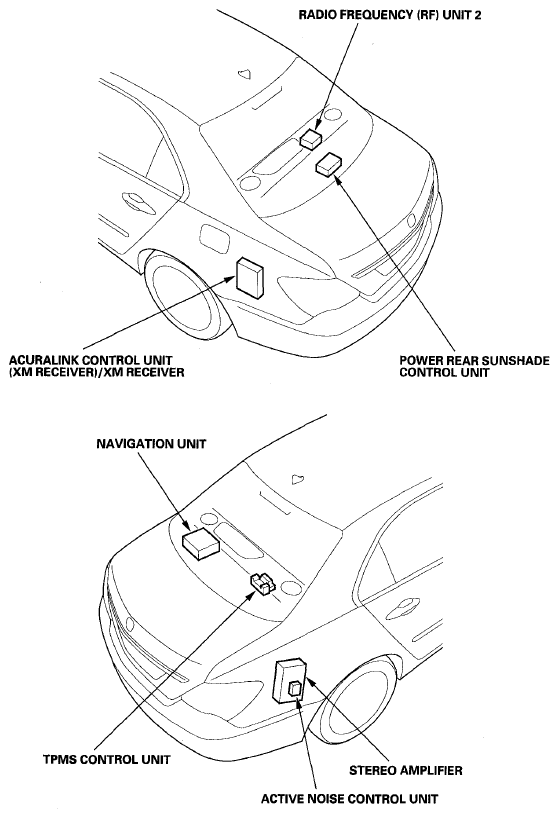

Fig 2: Identifying Relay And Control Unit Locations - Roof And Trunk (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
