Circuit Diagram - Power Tilt/Telescopic Steering

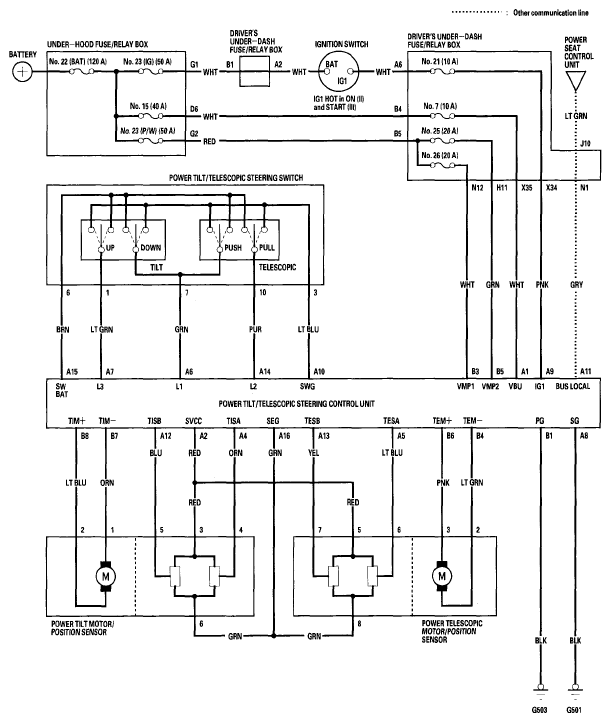

Fig 1: Power Tilt/Telescopic Steering - Circuit Diagram

G06160886

Courtesy of AMERICAN HONDA MOTOR CO., INC.
