Oil Filter Base Replacement

  1. Remove the oil filter (see OIL FILTER BASE REPLACEMENT  ).
  2. Remove the oil filter base (A).

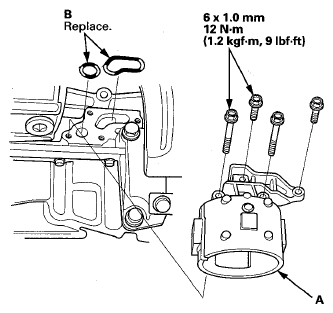

    Fig 1: Oil Filter Base And Bolts With Torque Specifications
    G08059097Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the O-ring grooves and the mating surfaces with the filter base.
  4. Install the oil filter base with new O-rings (B).
  5. Install the oil filter (see OIL FILTER BASE REPLACEMENT  ).
