Alternator Removal and Installation: Installation

Install the alternator.

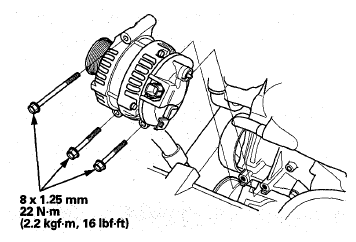

Fig 1: Alternator And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator 4P connector (A) and the positive alternator cable (B), then install the harness clamp (C) to the alternator.
Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.

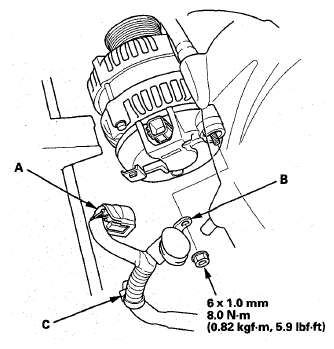

Fig 2: Alternator 4P Connector, Positive Alternator Cable And Harness Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C condenser fan shroud assembly (A), then connect the A/C condenser fan motor connector (B).

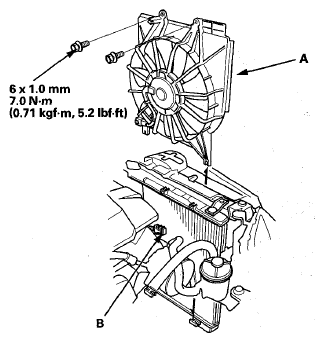

Fig 3: A/C Condenser Fan Shroud Assembly And Fan Motor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the support rod clamp bracket (A), then install the two bolts and the four clips.

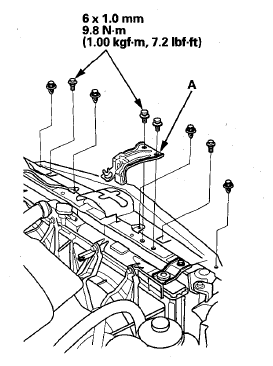

Fig 4: Support Rod Clamp Bracket, Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir.

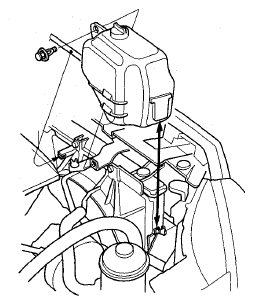

Fig 5: Identifying Coolant Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
