Sealing Bolt Installation

NOTE: When installing the sealing bolts (A, B) and the drain plug bolt (C), always use a new washer (except for the bolt (D).

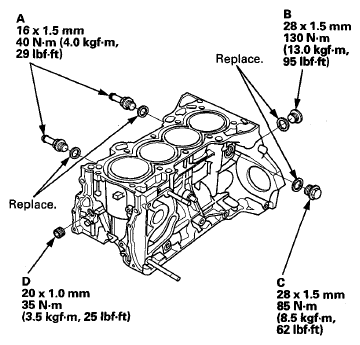

Fig 1: Sealing Bolts And Drain Plug Bolts With Torque Specifications
G08059083Courtesy of AMERICAN HONDA MOTOR CO., INC.
