Under-dash Fuse/Relay Box
WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

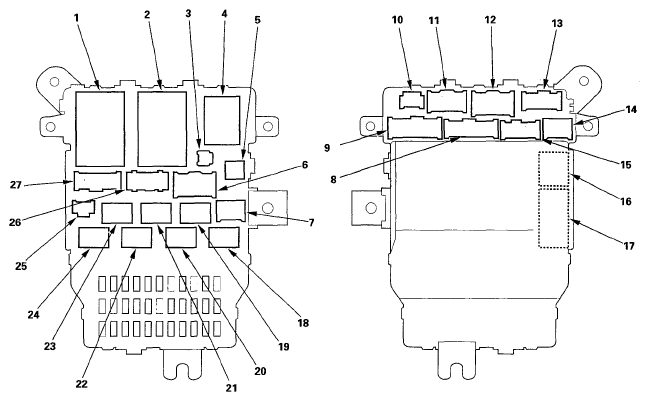

UNDER-DASH FUSE/RELAY BOX REFERENCE CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 6 | 6 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Accessory power socket relay | 19 | 4 | |
| A/F sensor relay (LAF) | 20 | 4 | |
| B | 12 | 6 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| C | 11 | 12 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| D | 13 | 17 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| E | 8 | 16 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| F | 9 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| G ('06-08 models) | 14 | 6 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| H | 15 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| Ignition coil relay (IG COIL) | 23 | 4 | |
| J | 27 | 21 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS ) |
| K | 26 | 12 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS ) |
| M | 25 | 3 | MCIC (MPCS) service check connector |
| N | 2 | 45 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| P | 17 | 30 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| PGM-FI main relay 1 (Fl MAIN) | 21 | 4 | |
| PGM-FI main relay 2 (FUEL PUMP) | 24 | 4 | |
| Power window relay | 22 | 4 | |
| Q | 16 | 14 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| R | 3 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| S | 5 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Starter cut relay (ST CUT) | 18 | 4 | |
| T | 7 | 6 | Optional connector |
| Turn signal/hazard relay | 4 | 6 | |
| X | 1 | 39 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| W | 10 | 5 | Roof wire harness (see ROOF WIRE HARNESS ) |
