Air Cleaner Removal/Installation

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts (A) and clamp (B).

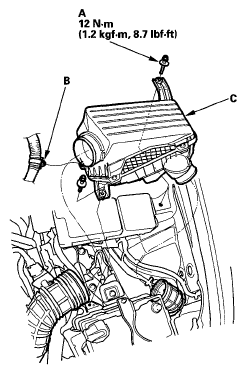

    Fig 1: Bolts And Clamp W/Torque Specification
    G05490837Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
