Intake Air Resonator Removal/Installation

  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION )
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION )
  3. Remove the air intake cover (A), the intake air ducts (B)

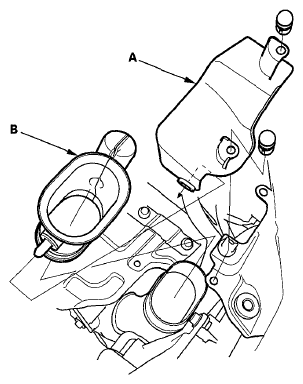

    4. Fig 1: Identifying Air Intake Cover
    G05992562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION )
  5. Remove the left front wheel
  6. Remove the clips (A), then remove the inner fender (B)
    7. Fig 2: Identifying Inner Fender And Clips
    G05992563Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the intake air resonator (A)
    NOTE: When installing the resonator, use a new seal ring (B)
    Fig 3: Identifying Intake Air Resonator And Seal Ring
    G05992564Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Disconnect ECM/PCM connectors A, B, and C, then remove the ECM/PCM (D)
    NOTE:
    • ECM/PCM connectors A, B, and C have symbols (A=□, B= Δ, C=◦) embossed on them for identification
    • Canada model When disconnecting the ECM/PCM connectors, remove the ECM/PCM subbracket (E)

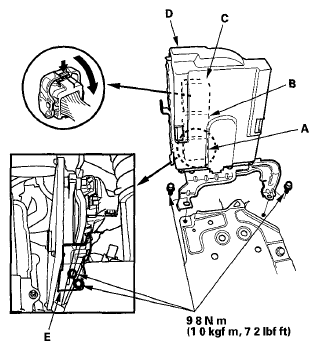

      • Fig 4: ECM/PCM Connectors With Torque Specification
      G05992565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the battery base (A).

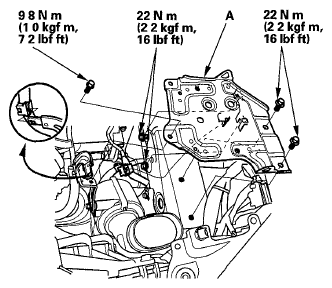

    10. Fig 5: Battery Base With Torque Specifications
    G05992566Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the intake air duct (A)

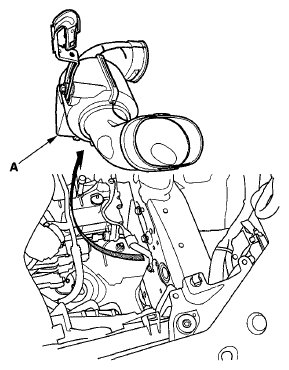

    11. Fig 6: Identifying Intake Air Duct
    G05992567Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the parts in the reverse order of removal
  12. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION )
