Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor/IAT sensor connector (A)

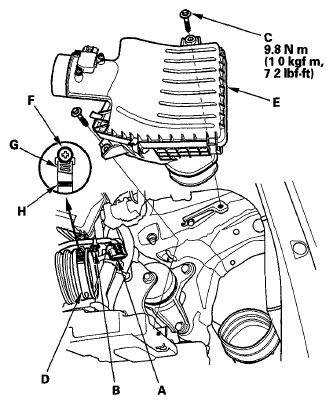

    2. Fig 1: MAF Sensor/IAT Sensor Connector With Torque Specification
    G05992560Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clamp (B) and bolts (C)
  3. Loosen the band (D), then remove the air cleaner housing (E)
  4. Install the parts in the reverse order of removal
NOTE: When torquing the screw of the hose band (F), align the edge of the hose band (G) with the mark (H) painted on the hose band
