DTC P1717: Open in Transmission Range Switch ATP RVS Switch Circuit: Notes

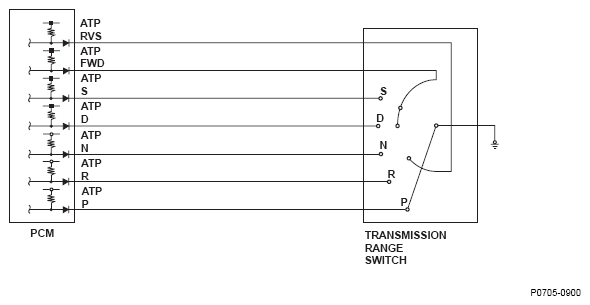

Fig 1: Open In Transmission Range Switch ATP RVS Switch Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Transmission range switch contact point input matrix

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT CHART

Shift lever position	Input per switch
	P	R	RVS	N	D	S	FWD
P	◦	X	X	X	X	X	X
R	X	◦	◦	X	X	X	X
N	X	X	X	◦	X	X	X
D	X	X	X	X	◦	X	◦
S	X	X	X	X	X	◦	◦
◦: Closed X: Open
