Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

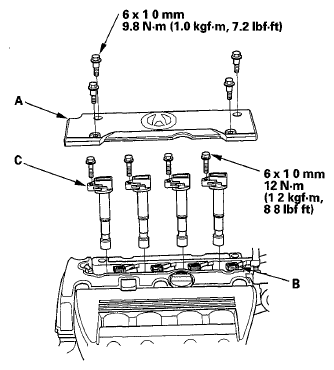

    Fig 1: Ignition Coil Cover And Ignition Coil Connectors With Torque Specifications
    G05991679Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ignition coils in the reverse order of removal.
