Sealing Bolt Installation
Sealing Bolt Installation
NOTE:
When installing the sealing bolt (A), always use a new washer

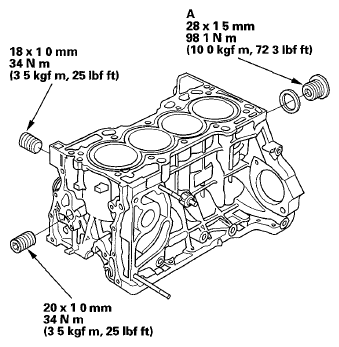

Fig 1: Sealing Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
