Piston, Pin, and Connecting Rod Replacement: Reassembly
- Install a piston pin snap ring (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil
- Heat the piston to about 158 °F (70 °C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

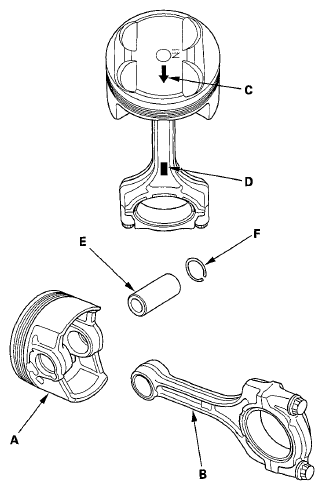

- Assemble the piston (A) and the connecting rod (B) with the arrow (C) and the embossed mark (D) on the same side Install the piston pin (E)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the remaining snap ring (F)
- Turn the snap rings in the ring grooves until the end the gaps are positioned at the bottom of the piston
