Connecting Rod Bolt Inspection

  1. Measure the diameter of each connecting rod bolt at point A and point B

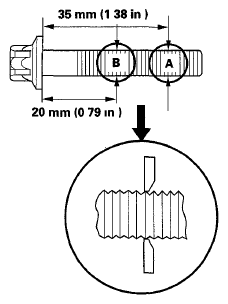

    2. Fig 1: Identifying Connecting Rod Bolt Diameter
    G05991985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Calculate the difference in diameter between point A and point B

    3. Point A-Point B = Difference in Diameter

    Difference in Diameter

    Specification: 0-0 1 mm (0-0 004 in)

  3. If the difference in diameter is out of specification, replace the connecting rod bolt
