Component Location Index

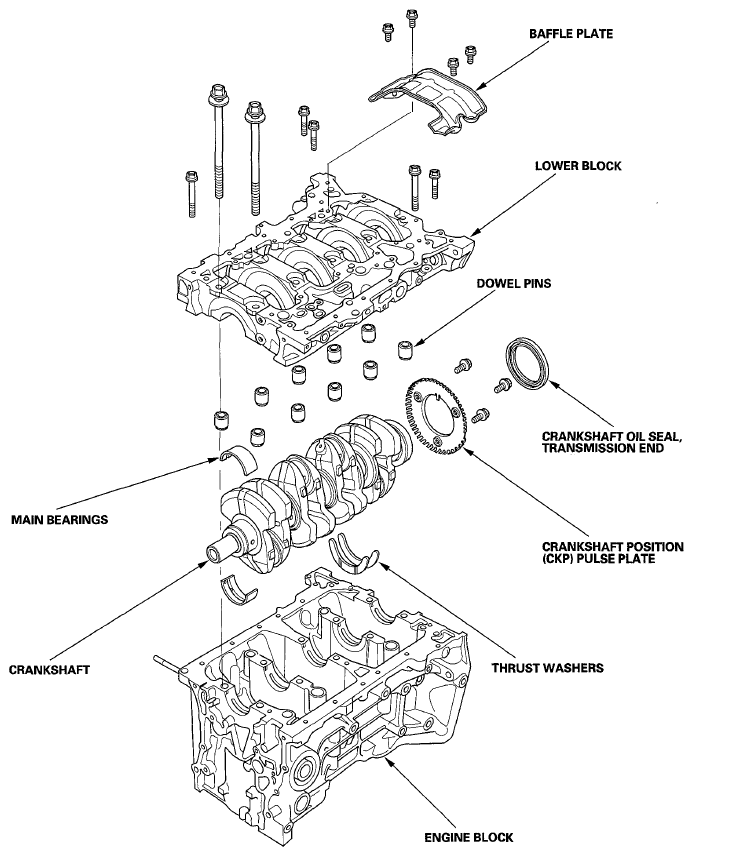

Fig 1: Identifying Engine Block Component Location (1 Of 2)
G05991930Courtesy of AMERICAN HONDA MOTOR CO., INC.

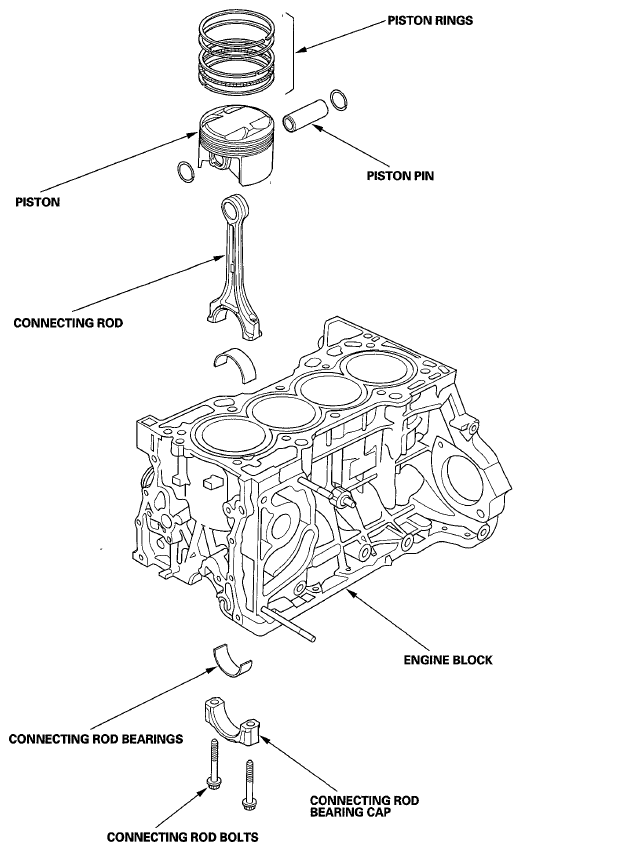

Fig 2: Identifying Engine Block Component Location (2 Of 2)
G05991931Courtesy of AMERICAN HONDA MOTOR CO., INC.
