Oil Pump Chain Replacement: Installation

  1. Set the crankshaft to top dead center (TDC) Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the engine block
    2. Fig 1: Aligning TDC Mark On Crankshaft Sprocket With Pointer On Engine Block
    G05992064Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the oil pump chain on the crankshaft sprocket with the colored link plate (A) aligned with the TDC mark (B) on the crankshaft sprocket
    3. Fig 2: Aligning TDC Mark On Crankshaft Sprocket And Colored Link Plate
    G05992065Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Set the oil pump chain on the oil pump chain sprocket (A) with the punch mark (B) aligned with the center of the two colored link plates (C), then install the oil pump chain sprocket to the oil pump

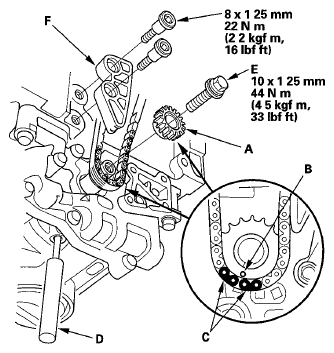

    4. Fig 3: Identifying Oil Pump Chain Sprocket And Colored Link Plates
    G05992066Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. To hold the rear balancer shaft, insert a 6 mm long pin punch (D) (Snap-on PPC108LA or equivalent) into the maintenance hole in the balancer shaft holder and through the rear balancer shaft
  5. Apply new engine oil to the threads of the oil pump sprocket mounting bolt (E), then install the oil pump sprocket mounting bolt and oil pump chain guide (F)
  6. Install the cam chain (see CAM CHAIN INSTALLATION )
  7. Remove the jack
  8. Turn the plate (A) counterclockwise, to release the lock, then push the oil pump chain auto-tensioner arm (B), and set the first cam (C) to the first edge of the rack (D) Insert a 3 0 mm (0 1 in) diameter pin (E) into the hole (F)
    NOTE: If the chain tensioner is not set up as described, the tensioner will become damaged
    Fig 4: Identifying Oil Pump Chain Auto-Tensioner Arm
    G05992067Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Use a transmission jack to lift the transmission 30-40 mm (1 2-1 6 in), then install the oil pump chain auto-tensioner

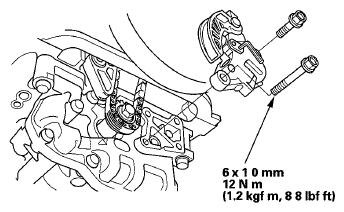

    10. Fig 5: Oil Pump Chain Auto-Tensioner With Torque Specification
    G05992068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the 3 0 mm (0 1 in) diameter pin (A) from the oil pump chain auto-tensioner

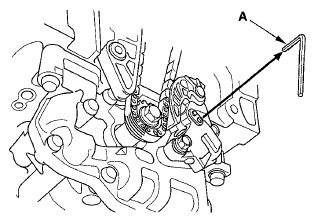

    11. Fig 6: Identifying Pin
    G05992069Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the oil pan (see OIL PAN INSTALLATION )
  12. Install the drive belt (see DRIVE BELT INSPECTION )
