Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector (A), then remove the oil pressure switch (B)

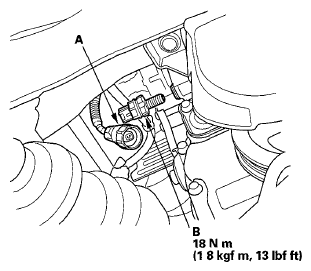

    2. Fig 1: Oil Pressure Switch Connector And Oil Pressure Switch With Torque Specification
    G05992015Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any old liquid gasket from the switch and switch mounting hole
  3. Apply a very small amount of liquid gasket to the oil pressure switch threads, then install the oil pressure switch
    NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch
