Oil Jet Replacement

  1. Remove the oil pump (see OIL PUMP REMOVAL )
  2. Remove the baffle plate (see step 10 on CRANKSHAFT AND PISTON REMOVAL )
  3. Remove the oil jet bolts (A), then remove the oil jets (B)

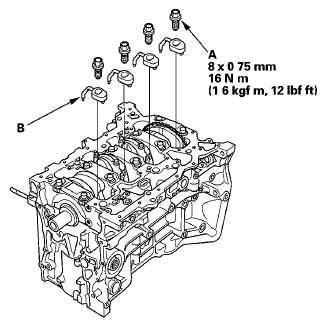

    4. Fig 1: Oil Jet With Torque Specification
    G05992028Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Carefully install the oil jets, and tighten the oil jet bolts
  5. Install the baffle plate (see step 24 on CRANKSHAFT INSTALLATION )
  6. Install the oil pump (see OIL PUMP INSTALLATION )
