Engine Oil Replacement

  1. Warm up the engine
  2. Remove the engine undercover

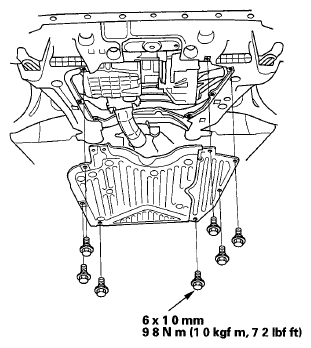

    3. Fig 1: Engine Undercover With Torque Specification
    G05992018Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the drain bolt (A), and drain the engine oil

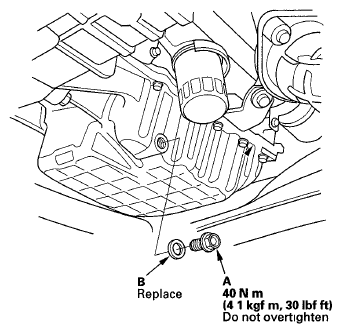

    4. Fig 2: Identifying Dram Bolt With Washer
    G05992019Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the dram bolt with a new washer (B)
  5. Refill the engine with the recommended oil (see LUBRICANTS AND FLUIDS )

    Capacity

    At Oil Change.

    3 8 L (4 0 US qt)

    At Oil Change Including Filter.

    4.0 L (4.2 US qt)

    After Engine Overhaul.

    5 1 L (5 4 US qt)

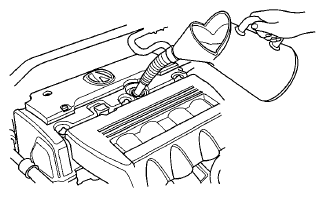

    Fig 3: Refilling Engine With Recommended Oil
    G05992020Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on GENERAL TROUBLESHOOTING INFORMATION )
  7. Turn the ignition switch to ON (II)
  8. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain control module (PCM) If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING )
  9. Select BODY ELECTRICAL with the HDS
  10. Select ADJUSTMENT in GAUGE MENU with the HDS
  11. Select RESET in the MAINTENANCE MINDER with the HDS
  12. Select RESETTING THE ENGINE OIL LIFE with the HDS
    NOTE: If you changed the automatic transmission fluid (ATF) at the same time with the engine oil, select RESETTING THE ENGINE OIL LIFE AND ATF with the HDS instead
  13. Run the engine for more than 3 minutes, then check the oil level and oil leaks
