Component Location Index

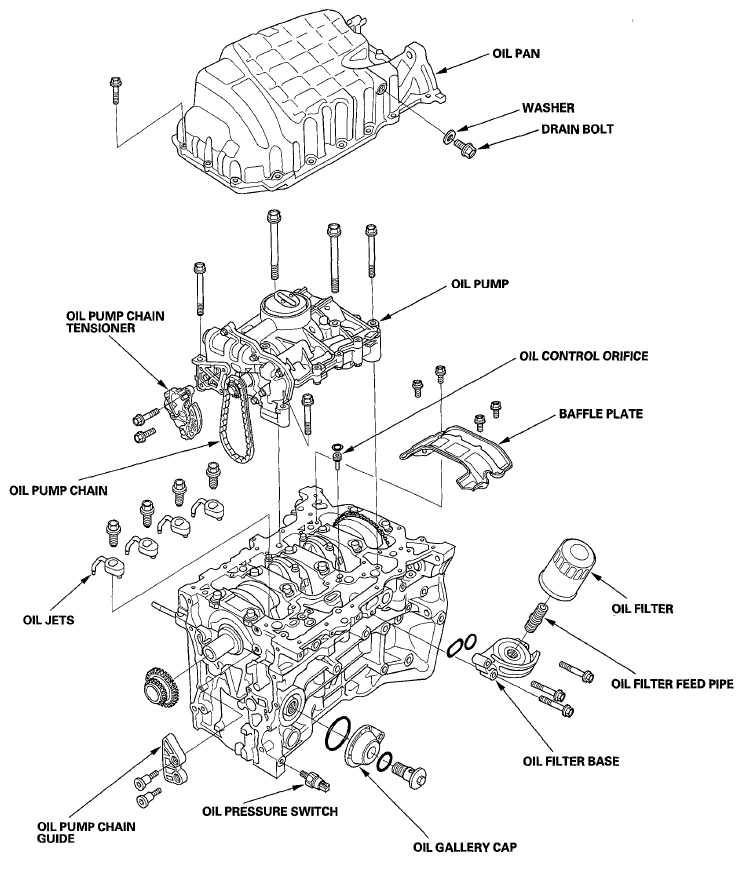

Fig 1: Identifying Engine Lubrication Components Location

G05992010

Courtesy of AMERICAN HONDA MOTOR CO., INC.
