Starter Performance Test

Remove the starter (see STARTER REMOVAL AND INSTALLATION ).
Make a connection for this test using the thickest (gauge) wire possible (preferably the same gauge as used on the vehicle).
NOTE: To avoid damaging the starter, never leave the battery connected for more than 10 seconds.

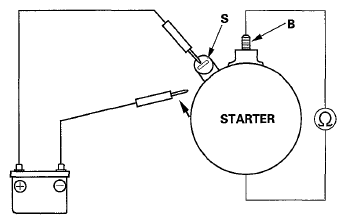

Fig 1: Checking Continuity Between B Terminal And Starter Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the battery as shown, and check for continuity between the B terminal and the starter body. If there is continuity, it is working properly
Disconnect the battery from the body, and check for continuity between the B terminal and the starter body If there is no continuity, it is working properly

Fig 2: Checking Continuity Between B Terminal And Starter Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Firmly clamp the starter in a vise
Connect the starter to the battery as shown, and confirm that the motor runs

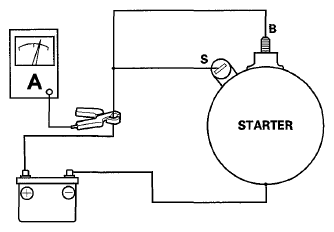

Fig 3: Connecting Starter To Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the electric current meets the specification when the battery voltage is at 11.5 V, the starter is working properly.
Specification

Electric Current: 80 A or less
