Component Location Index

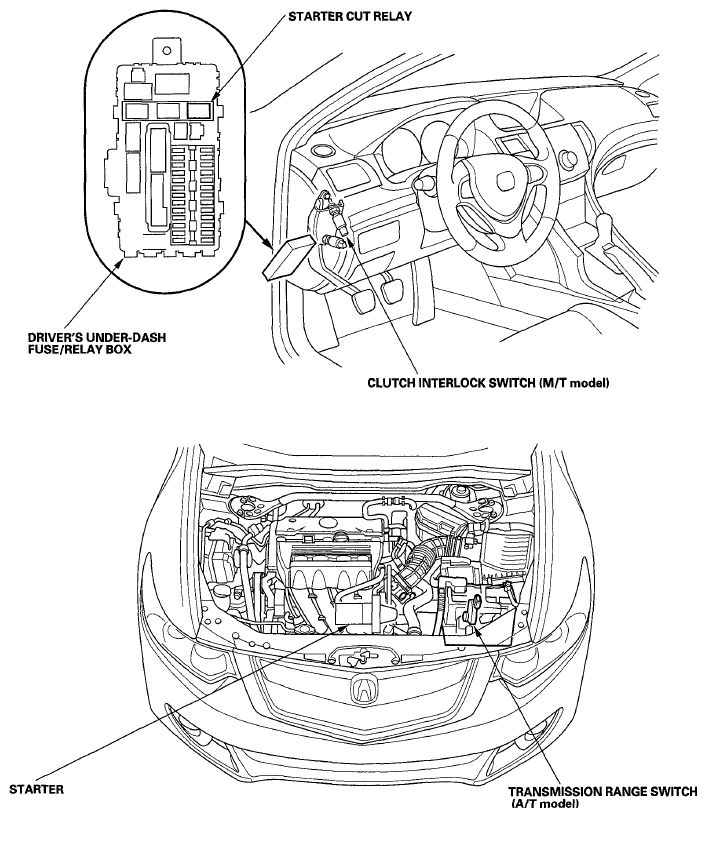

Fig 1: Identifying Starting System Component Location Index

G05991647

Courtesy of AMERICAN HONDA MOTOR CO., INC.
