M/T model

Disconnect the clutch interlock switch connector (A).

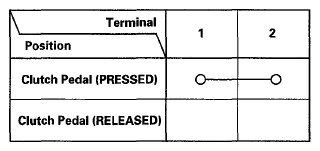

Fig 1: Identifying Clutch Interlock Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals according to the table
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).
