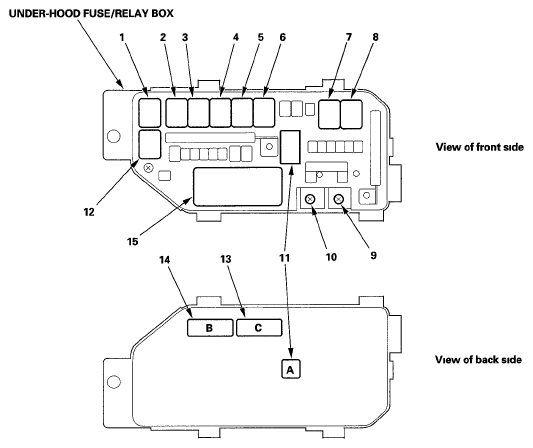

Under-hood Fuse/Relay Box
UNDER-HOOD FUSE/RELAY CONNECTOR TERMINAL REFERENCE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (electrical load detector (ELD)) | 11 | 3 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| A/C compressor clutch relay | 12 | 4 | ||
| B | 14 | 14 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Blower motor relay | 1 | 4 | ||
| C | 13 | 10 | Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) ) | |
| Electronic throttle control system (ETCS) control relay | 6 | 4 | ||
| Horn relay | 2 | 4 | ||
| Ignition coil relay | 5 | 4 | ||
| PGM-FI main relay 1 (Fl MAIN) | 3 | 4 | ||
| PGM-FI subrelay | 4 | 4 | ||
| Radiator fan relay | 7 | 4 | ||
| Rear window defogger relay | 8 | 4 | ||
| Relay circuit board | 15 | Connector B (HP) and C (10P) | ||
| T101 | 9 | - | Starter subharness (see STARTER SUBHARNESS ) | |
| T102 | 10 | - | Starter subharness (see STARTER SUBHARNESS ) |
