Trunk Lid Opener Switch Replacement

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the trunk lid.
Put on gloves to protect your hands.

Remove these items:
- Trunk lid trim (see TRIM REMOVAL/INSTALLATION - TRUNK LID )
- Rear license trim (see REAR LICENSE TRIM REPLACEMENT )
Remove the bolts and disconnect the connector (A), then remove the trunk lid switch (B).

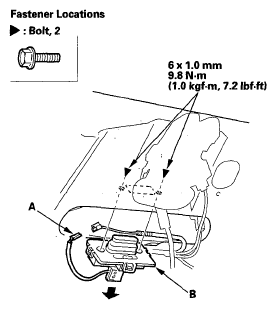

Fig 1: Removing Trunk Lid Switch w/Torque Spec.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Make sure the trunk lid opens properly.
