Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the following table to cross-reference the malfunctioning function to the line(s) that should be checked:

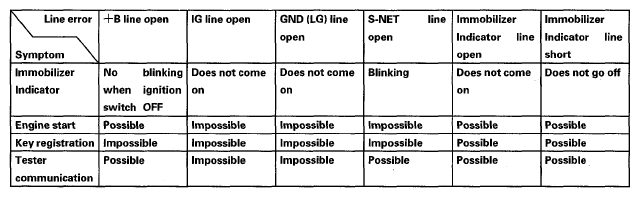

Fig 1: Malfunctioning Symptom Troubleshooting Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
