'04-06 models

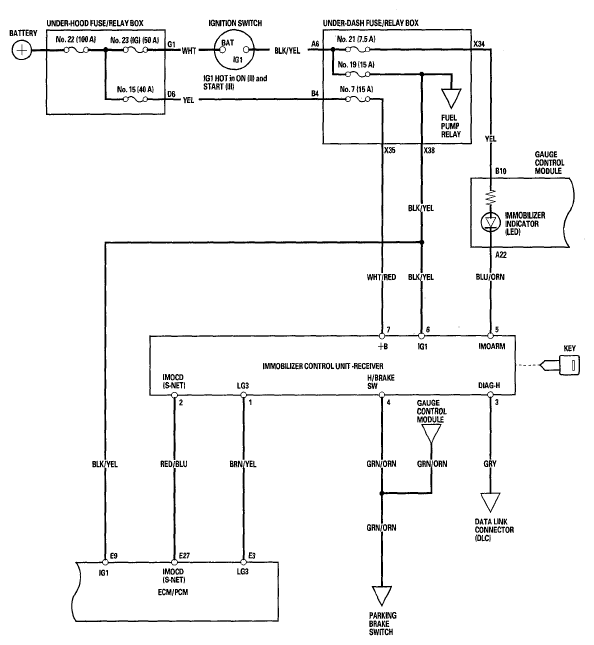

Fig 1: Immobilizer System Circuit Diagram ('04-06 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
'07-08 models

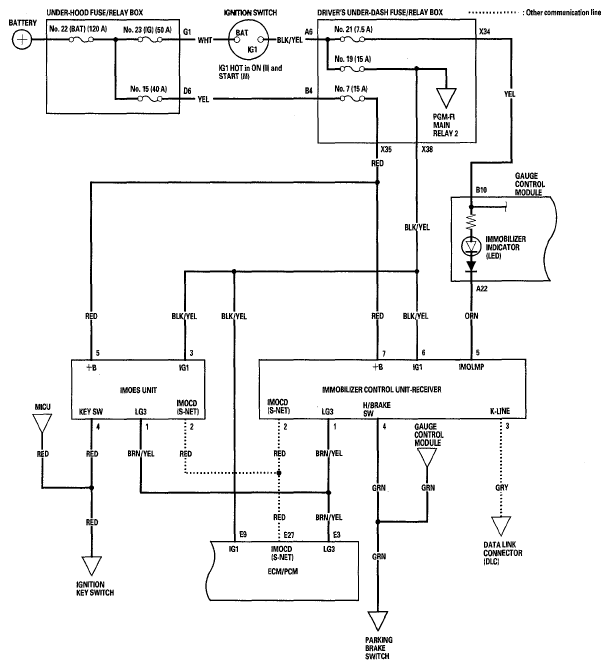

Fig 2: Immobilizer System Circuit Diagram ('07-08 Models)
