MAP Sensor Replacement

  1. Disconnect the MAP sensor connector (A)

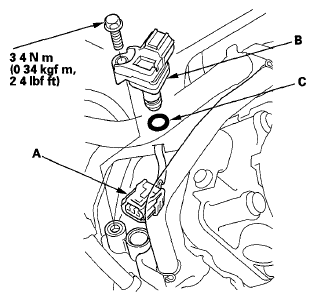

    Fig 1: MAP Sensor Connector, MAP Sensor, O-Ring With Torque Specification
    G05992361Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the MAP sensor (B)
  3. Install the parts in the reverse order of removal with a new O-ring (C)
