Component Location Index

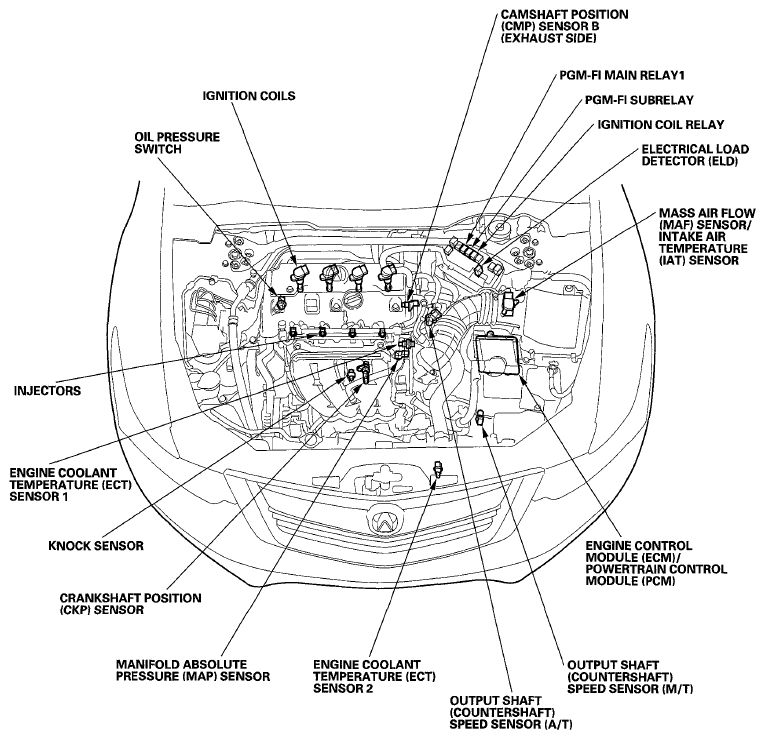

Fig 1: Identifying PGM-FI System Components Location (1 Of 2)
G05992194Courtesy of AMERICAN HONDA MOTOR CO., INC.

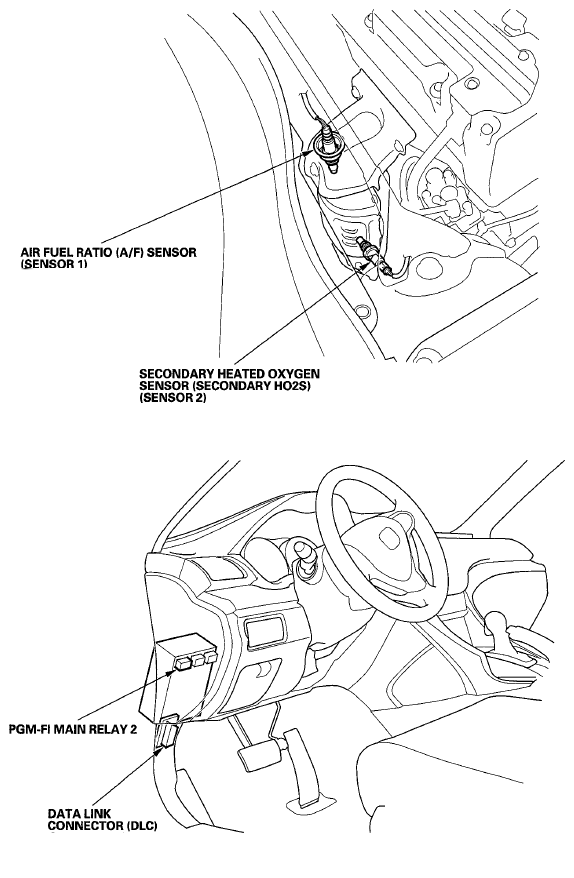

Fig 2: Identifying PGM-FI System Components Location (2 Of 2)
G05992195Courtesy of AMERICAN HONDA MOTOR CO., INC.
