DTC P2195: Air/Fuel Ratio (A/F) Sensor (Sensor 1) Signal Stuck Lean: Notes

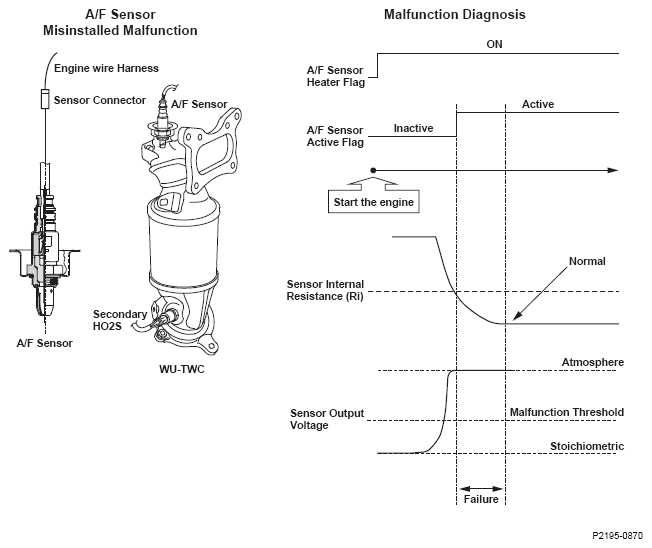

Fig 1: Air/Fuel Ratio (A/F) Sensor With Malfunction Diagnosis Graph

G06124101

Courtesy of AMERICAN HONDA MOTOR CO., INC.
