DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

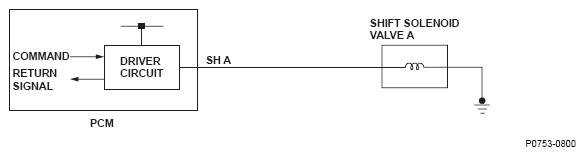

Fig 1: Open In Shift Solenoid Valve - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

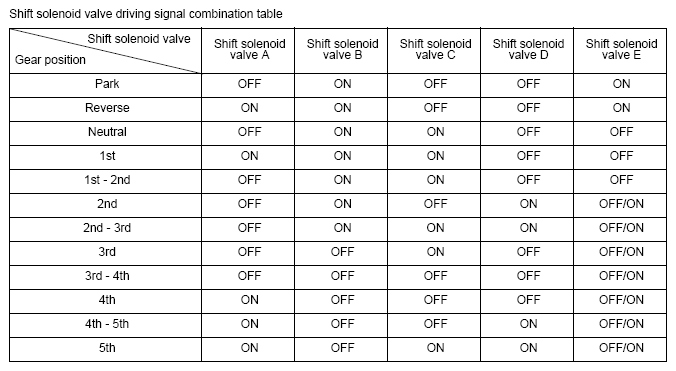

Fig 2: Shift Solenoid Valve Driving Signal Combination Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
