DTC P0752: Shift Solenoid Valve A Stuck ON: Notes

Fig 1: Shift Solenoid Valve A Stuck ON - Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

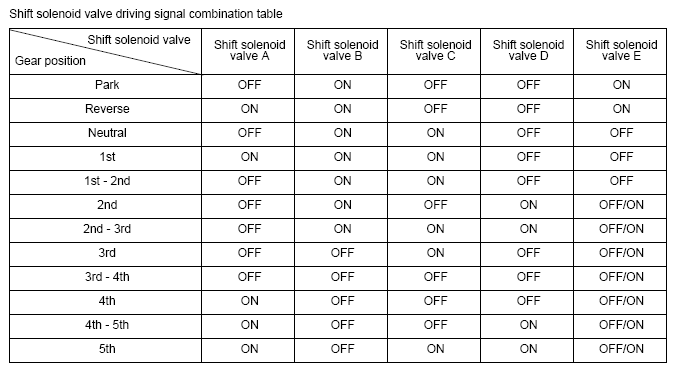

Fig 2: Shift Solenoid Valve Driving Signal Combination Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
