TPMS Control Unit (V6) Connector End View

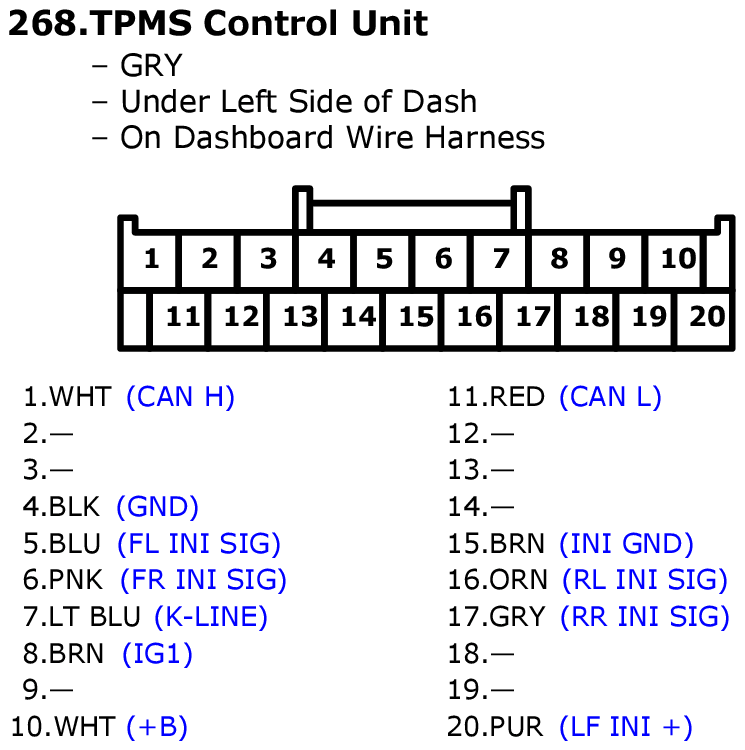

Fig 1: TPMS Control Unit (V6) Connector End View

GHHW12355

Courtesy of AMERICAN HONDA MOTOR CO., INC.
