Gauge Control Module (V6) Connector End View

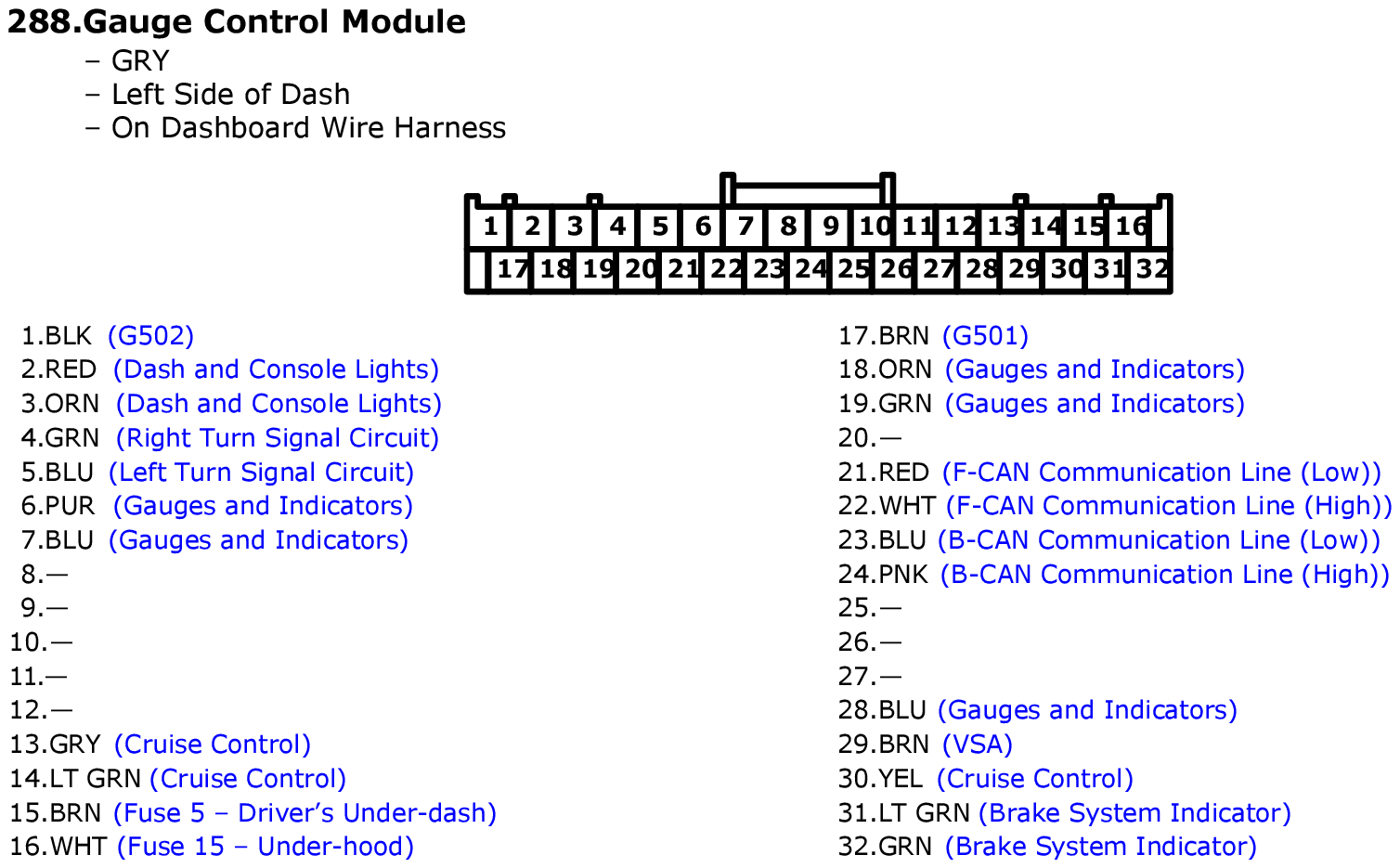

Fig 1: Gauge Control Module (V6) Connector End View

GHHW12375

Courtesy of AMERICAN HONDA MOTOR CO., INC.
