Component Location Index

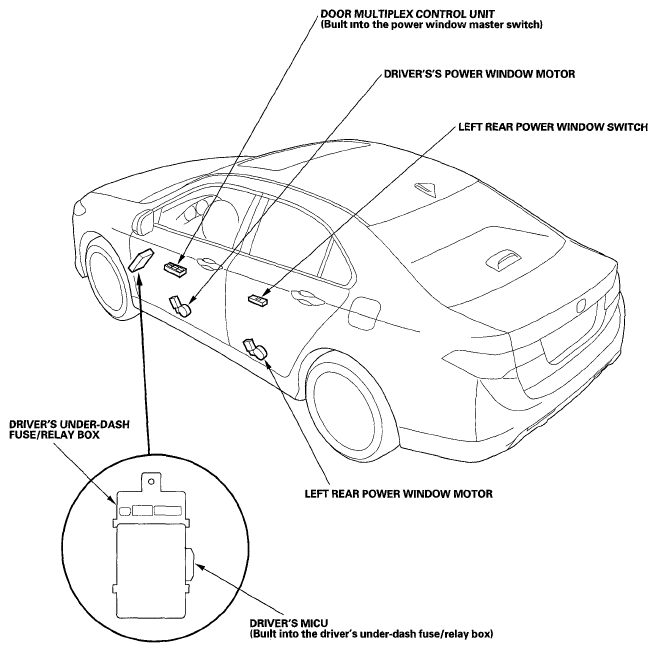

Fig 1: Identifying Power Windows Component Location (1 Of 2)
G05995014Courtesy of AMERICAN HONDA MOTOR CO., INC.

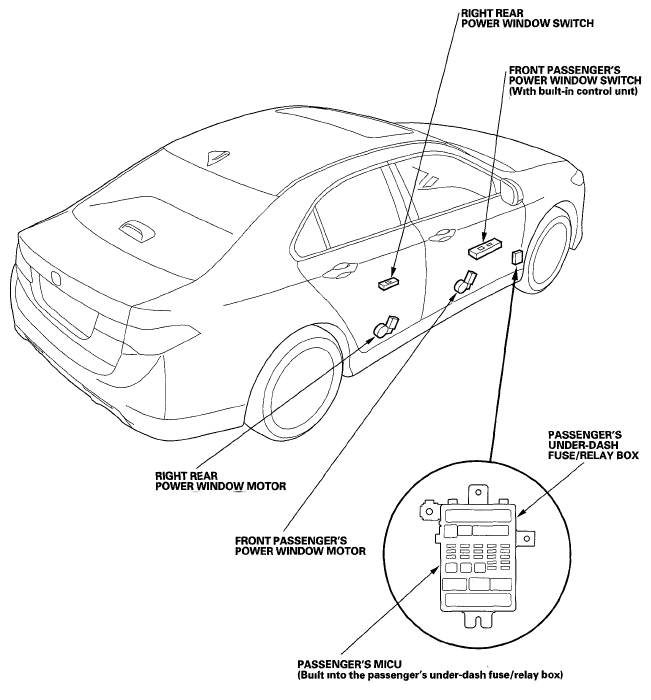

Fig 2: Identifying Power Windows Component Location (2 Of 2)
G05995015Courtesy of AMERICAN HONDA MOTOR CO., INC.
