Component Location Index

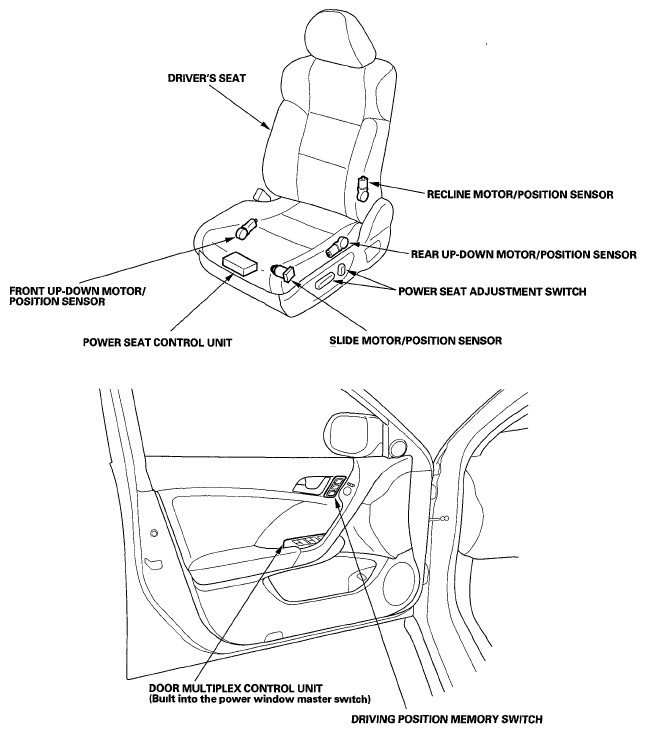

Fig 1: Identifying Driver Position Memory System Component Location

G05995192

Courtesy of AMERICAN HONDA MOTOR CO., INC.
