Secondary Valve Body

The secondary valve body is on the main valve body The secondary valve body contain shift valves C and D, CPC valves B and C, the reverse control valve, and the reverse CPC valve

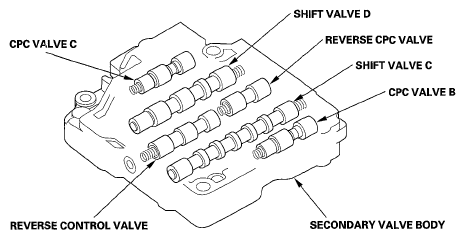

Fig 1: Identifying Secondary Valve Body Components
G05990618Courtesy of AMERICAN HONDA MOTOR CO., INC.
