DTC P1745: Problem in Shift Control System; Servo Control Valve Stuck OFF or Servo Valve Stuck OFF: Notes

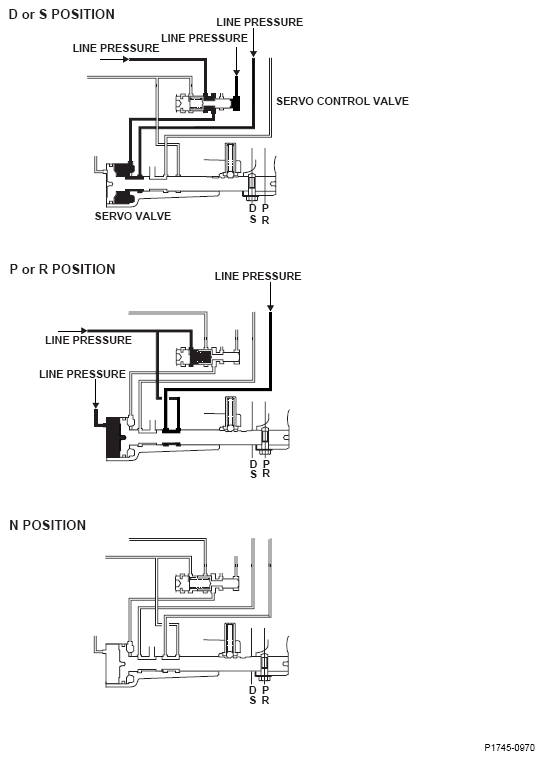

Fig 1: Problem In Shift Control System Servo Control Valve Stuck OFF Or Servo Valve Stuck OFF - Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

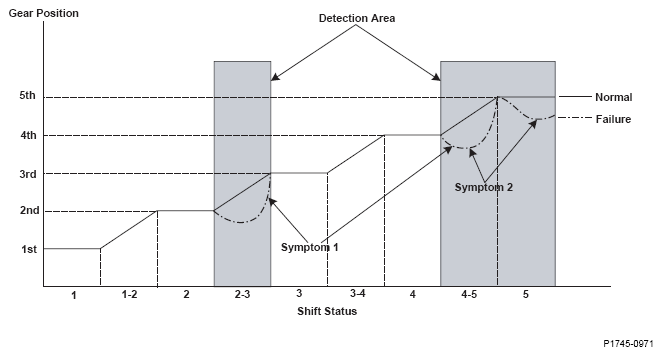

Fig 2: Gear Position Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

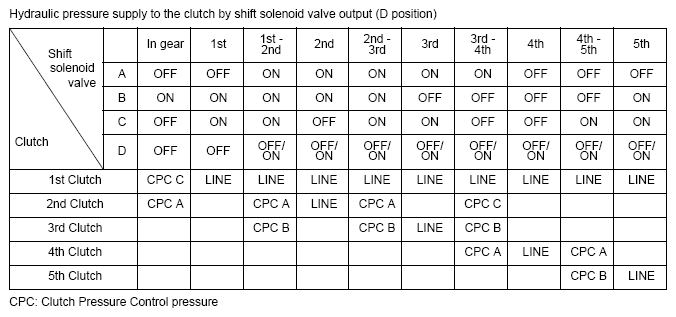

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve And Clutch Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CPC: Clutch Pressure Control pressure
