Acura
>>
2009
>>
TL Base
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
EVAP System
>>
Component Location Index
Component Location Index

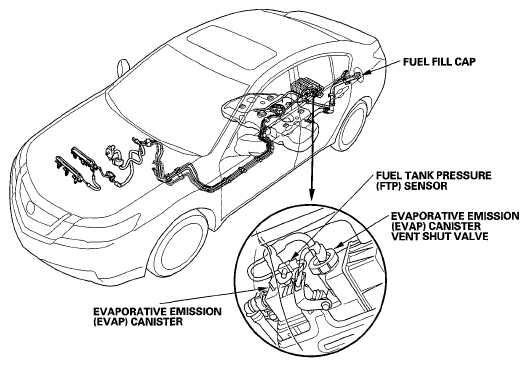

Fig 1: Identifying EVAP System Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Without SH-AWD

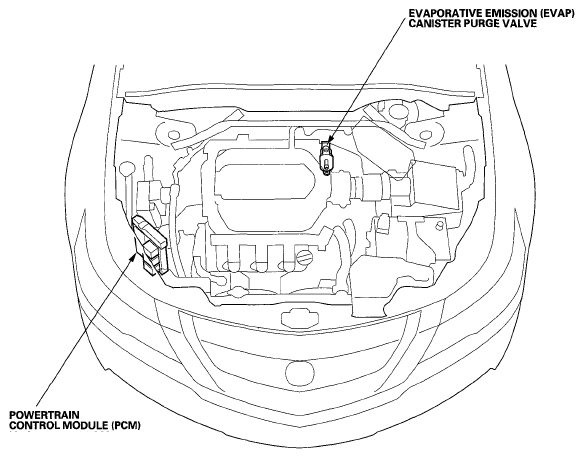

Fig 2: Identifying EVAP System Component Locations- Without SH-AWD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With SH-AWD

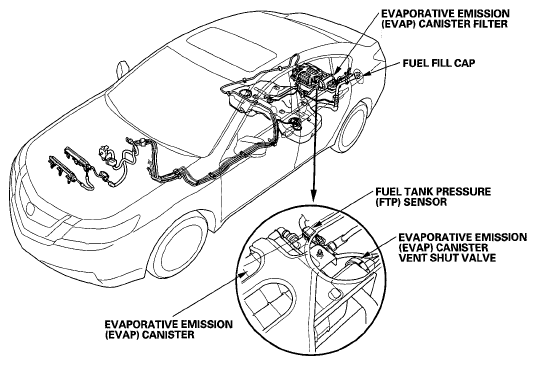

Fig 3: Identifying EVAP System Component Locations- With SH-AWD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
