Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

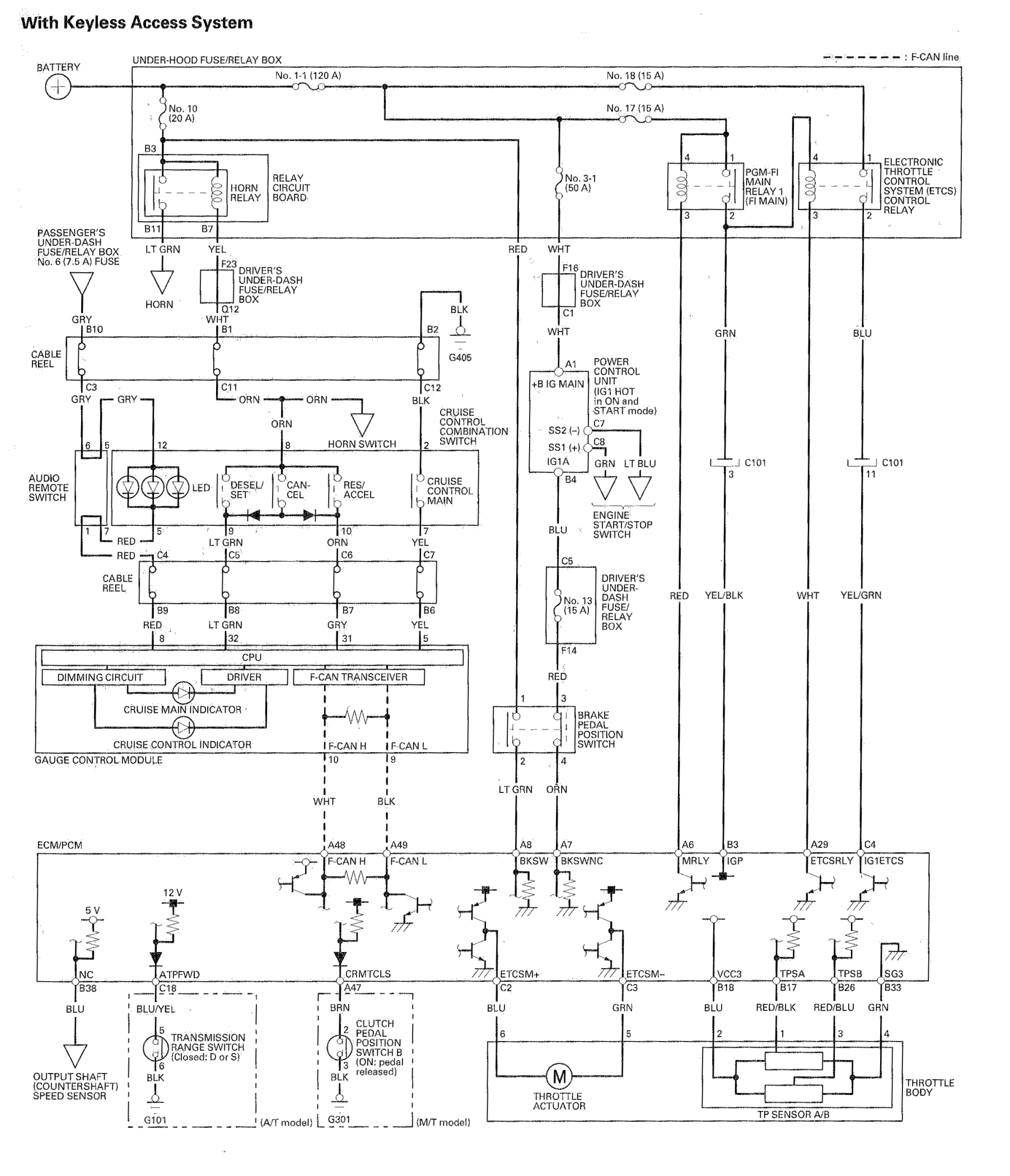

Fig 1: Cruise Control Circuit Diagram - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
