Remote Starting Control Unit Connector End View (Remote Starting System (Acura Accessory)) (View 365)
Remote Starting Control Unit Connector End View (Remote Starting System (Acura Accessory)) (View 365)
N/A
Under Left Side of Dash
On Remote Starting Wire Harness

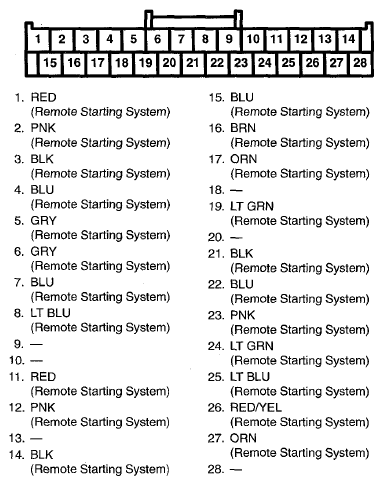

Fig 1: Remote Starting Control Unit Connector Terminal (Remote Starting System (Acura Accessory)) (View 365)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
