Remote Slot Control Unit Connector End View (Keyless Access) (View 316)
Remote Slot Control Unit Connector End View (Keyless Access) (View 316)
GRY
Behind Glove Box
On Dashboard Wire Harness

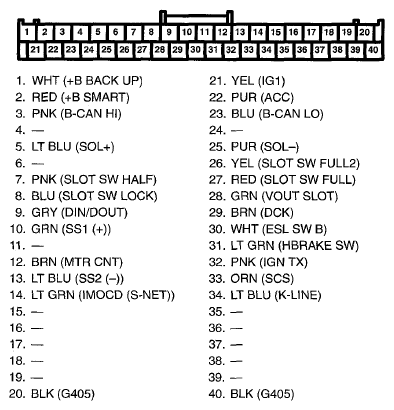

Fig 1: Remote Slot Control Unit Connector Terminal (Keyless Access) (View 316)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
