Power Window Master Switch Connector End View (View 315)
Power Window Master Switch Connector End View (View 315)
GRY
Driver's Door
On Driver's Door Switch Sub-harness

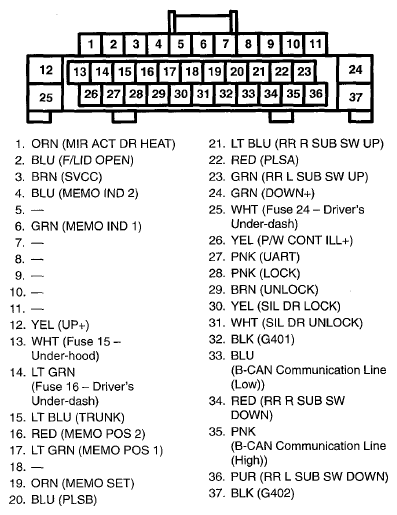

Fig 1: Power Window Master Switch Connector Terminal (View 315)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
