Moonroof Control Unit/Motor Connector End View (View 277)
Moonroof Control Unit/Motor Connector End View (View 277)
GRY
Middle of Roof
On Moonroof Sub-harness

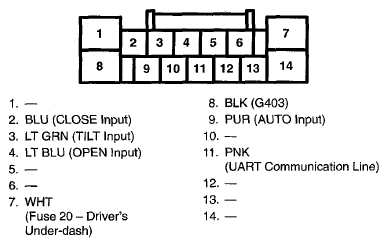

Fig 1: Moonroof Control Unit/Motor Connector Terminal (View 277)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
