IG1A Relay and IG2 Relay Connector End View (Remote Starting System (Acura Accessory: Keyless Access)) (View 363)
IG1A Relay and IG2 Relay Connector End View (Remote Starting System (Acura Accessory: Keyless Access)) (View 363)
N/A
Under Left Side of Dash
On Remote Starting Wire Harness

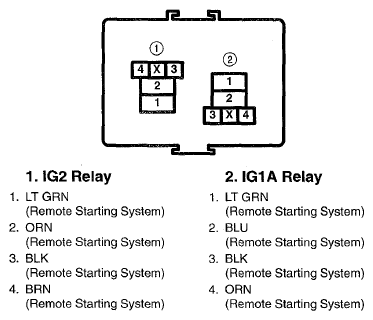

Fig 1: IG1A Relay And IG2 Relay Connector Terminal (Remote Starting System (Acura Accessory: Keyless Access)) (View 363)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
