IG1 Relay and IG2 Relay Connector End View (Remote Starting System (Acura Accessory: Without Keyless Access)) (View 362)
IG1 Relay and IG2 Relay Connector End View (Remote Starting System (Acura Accessory: Without Keyless Access)) (View 362)
N/A
Under Left Side of Dash
On Remote Starting Wire Harness

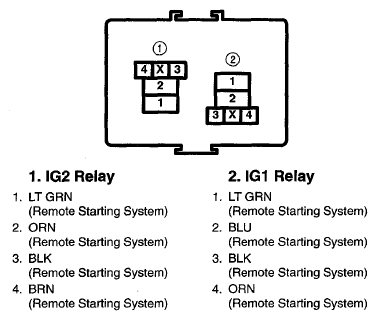

Fig 1: IG1 Relay And IG2 Relay Connector Terminal (Remote Starting System (Acura Accessory: Without Keyless Access)) (View 362)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
