Driver's Climate Control Switch Connector End View (View 280)
Driver's Climate Control Switch Connector End View (View 280)
GRY
Middle of Dash
On Dashboard Wire Harness

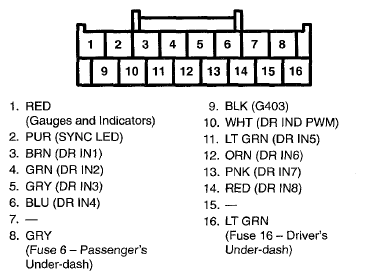

Fig 1: Driver's Climate Control Switch Connector Terminal (View 280)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
