Cruise Control Combination/Select/Reset/Information Switch Connector End View (View 250)
Cruise Control Combination/Select/Reset/Information Switch Connector End View (View 250)
WHT
Steering Wheel
On Cable Reel Sub-harness

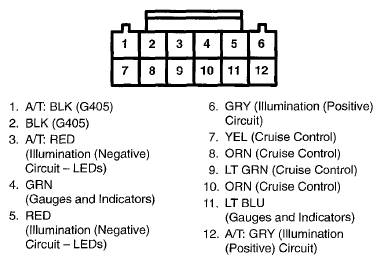

Fig 1: Cruise Control Combination/Select/Reset/Information Switch Connector Terminal (View 250)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
