Audio-HVAC Display Unit Connector End View (Without Navigation) (View 246)
Audio-HVAC Display Unit Connector End View (Without Navigation) (View 246)
GRY
Middle of Dash
On Audio Wire Harness

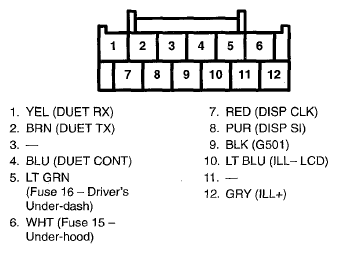

Fig 1: Audio-HVAC Display Unit Connector Terminal (Without Navigation) (View 246)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
